PVC Ceiling Panels

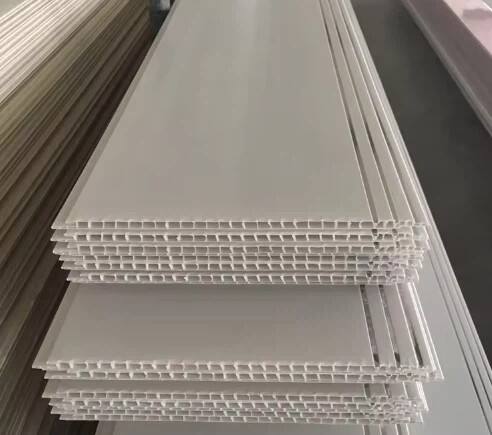

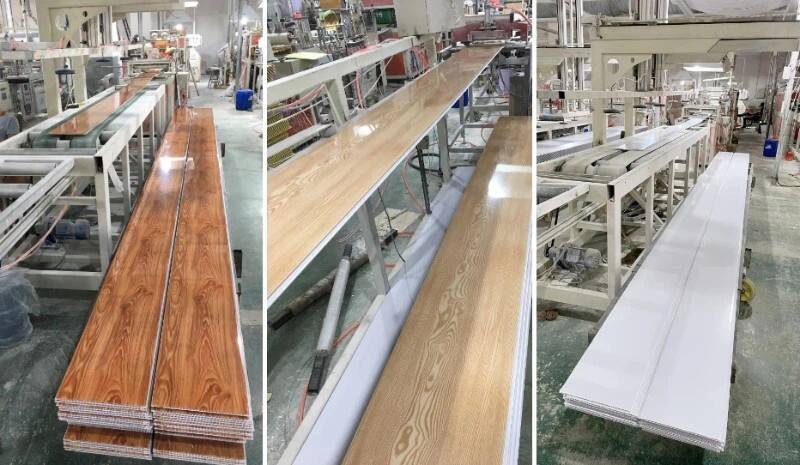

PVC Ceiling Panels, a lightweight decorative ceiling material made of polyvinyl chloride (PVC) resin, reinforced with additives (e.g., stabilizers, modifiers), processed via extrusion or calendering.

Brief Description

Combining practicality and affordability, this ceiling panel features moisture resistance, corrosion resistance, and easy installation—solving issues like mold growth or deformation of traditional ceiling materials (e.g., wood, gypsum). It is lightweight, low-maintenance, and available in diverse textures/colors, suitable for both residential and commercial ceiling decoration.

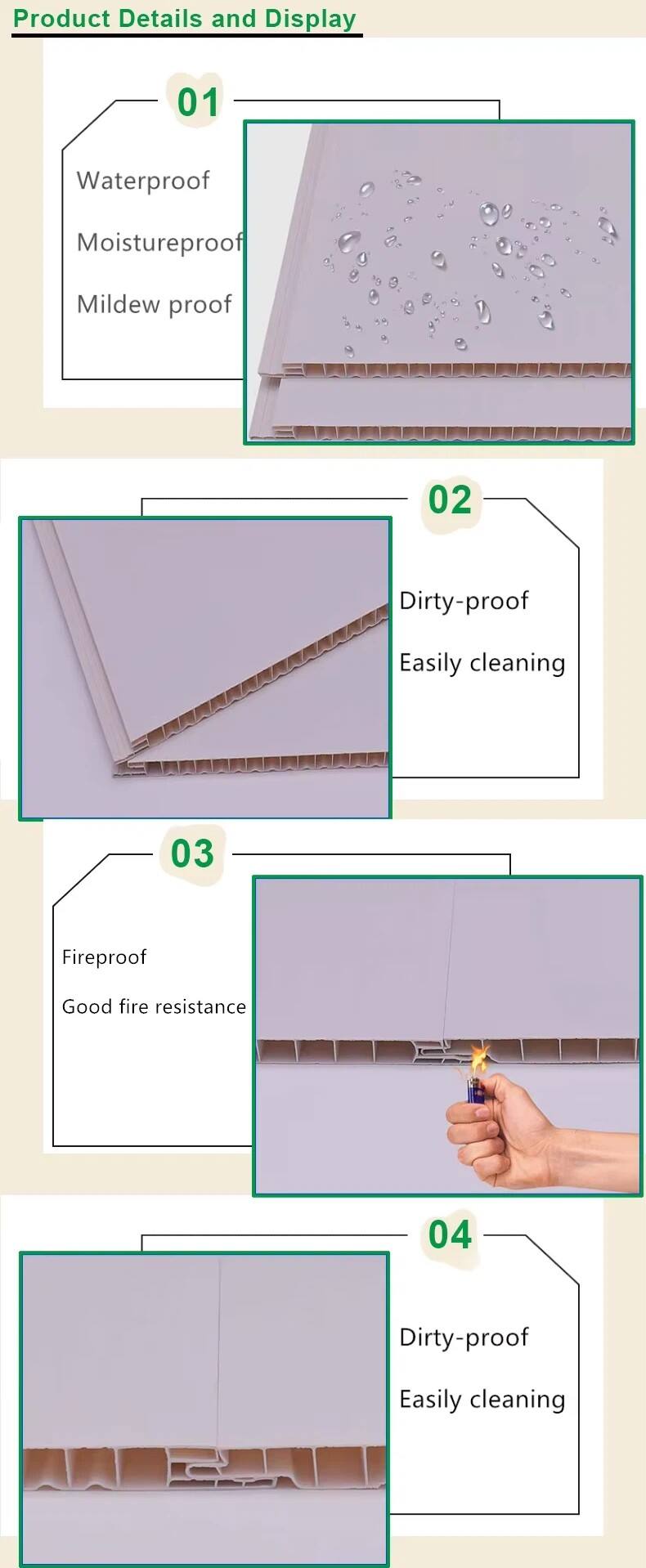

Key Features

Moisture & Mold Resistant: Impermeable to water; no mold or rot even in high-humidity areas (e.g., bathrooms, kitchens).
Lightweight & Easy to Install: Weight 0.8-1.2kg/m²; can be cut with a utility knife; installed via keels or direct adhesion (no heavy tools needed).
Low Maintenance: Smooth surface resists dust and stains; clean with a damp cloth (no painting or polishing required).
Durable & Cost-Effective: Resists aging and discoloration; service life ≥10 years; lower cost than wood or metal ceilings.
Versatile Design: Simulates wood grains, marble, or plain colors; available in plain, grooved, or embossed styles.

Typical Applications

Residential: Bathroom ceilings, kitchen ceilings, balcony ceilings, basement ceilings (moisture-prone areas).
Commercial: Restaurant kitchens, hotel bathrooms, shopping mall restrooms, office pantry ceilings.
Special Scenes: Laundry rooms, indoor swimming pool auxiliary areas, garage ceilings (high-durability needs).

Standard Sizes & Models

Sizes
Thickness: 0.8mm, 1.0mm, 1.2mm (common for ceiling use).
Width×Length: Standard widths: 20cm, 30cm, 40cm; standard lengths: 2.4m, 3m; custom lengths (max 6m) available.
Models

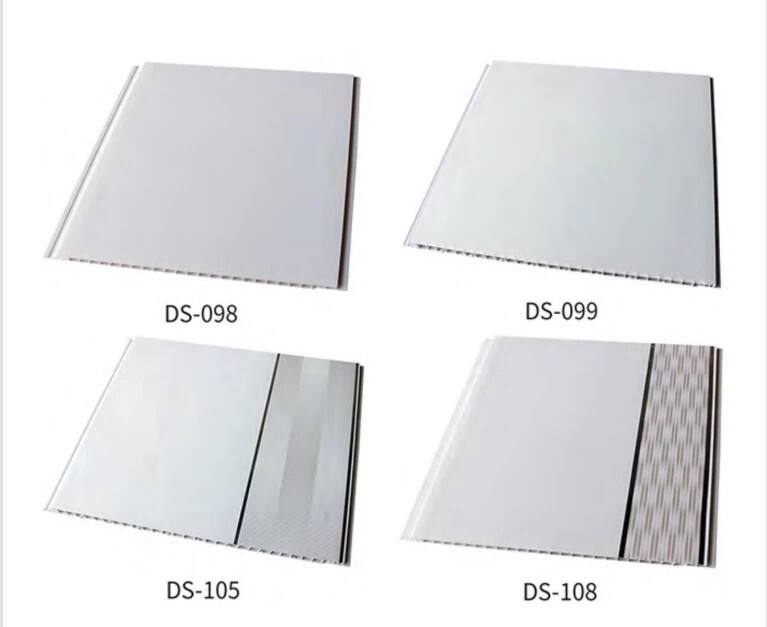

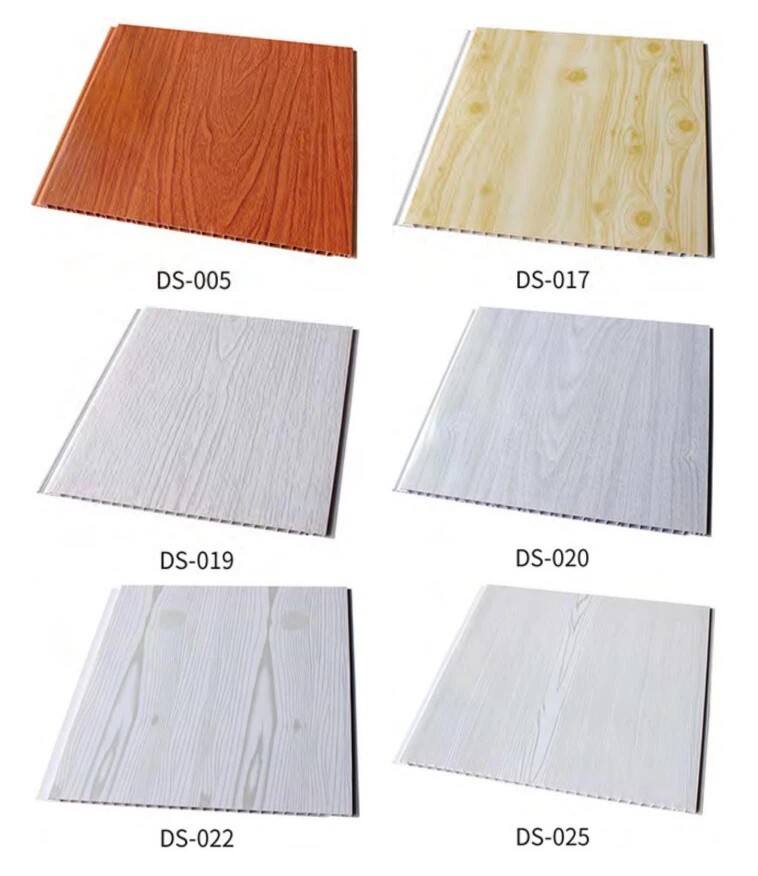

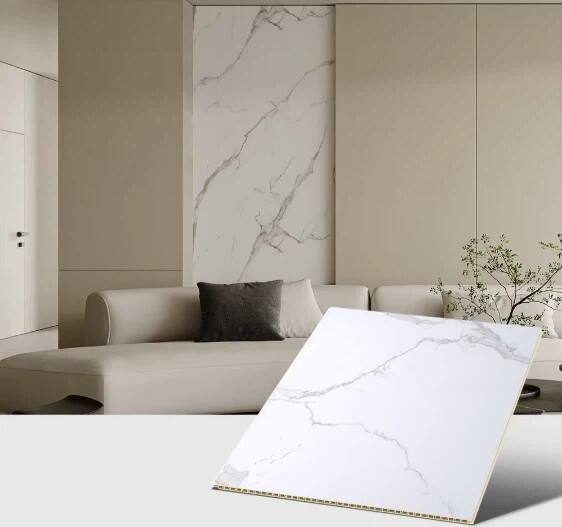

By texture: Wood-grained (PVC-C-W), Marble-patterned (PVC-C-M), Plain white (PVC-C-P).

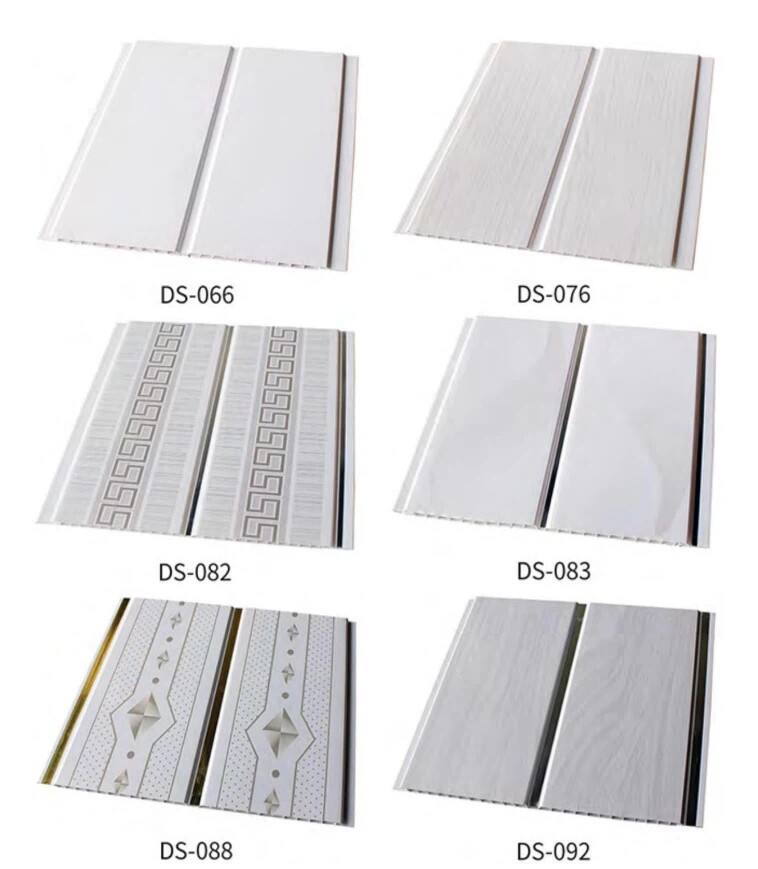

By structure: Plain panel (smooth surface, for simple styles), Grooved panel (with 2-3mm grooves, for layered look), Embossed panel (3D patterns, for decorative needs).

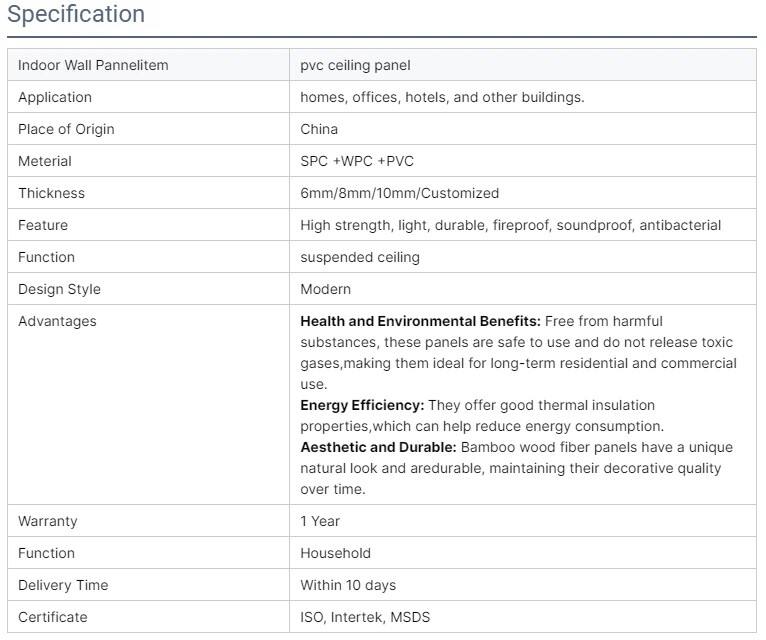

Specifications



Technical Parameters

Physical Performance: Density 1.3-1.5g/cm³; Tensile strength ≥15MPa; Impact strength ≥5kJ/m² (no cracking).
Eco Performance: Formaldehyde emission ≤0.01mg/m³; Heavy metal (Pb/Cd) content ≤10mg/kg (meets RoHS standards).
Durability: Heat resistance (≤80℃, no deformation); Cold resistance (≥-10℃, no brittleness); Moisture absorption rate ≤0.1% (no swelling).

FAQ

Q: Can it be used in bathrooms with frequent steam?
A: Yes—its moisture resistance prevents mold; install with waterproof keels and seal joints with silicone glue.

Q: Is it easy to replace if a panel is damaged?
A: Yes—panels are connected via clips; just remove the damaged panel and snap a new one into the keels (no full ceiling removal).

Q: Will it turn yellow over time?
A: High-quality panels have anti-yellowing additives; indoor use (no direct sunlight) keeps color stable for 8-10 years.

Installation & Maintenance Tips

Pre-installation: Store in a dry, cool area (avoid direct sunlight); check ceiling joists for stability (max spacing 60cm).
Installation: Install keels first (level with a spirit level); snap panels into keels (leave 1-2mm expansion gaps at edges); cut panels to size with a utility knife or saw.
Maintenance: Clean with water or neutral detergent (avoid abrasive cleaners); check keels annually for looseness; replace damaged panels promptly to prevent adjacent damage.
